Continuous Position Indication

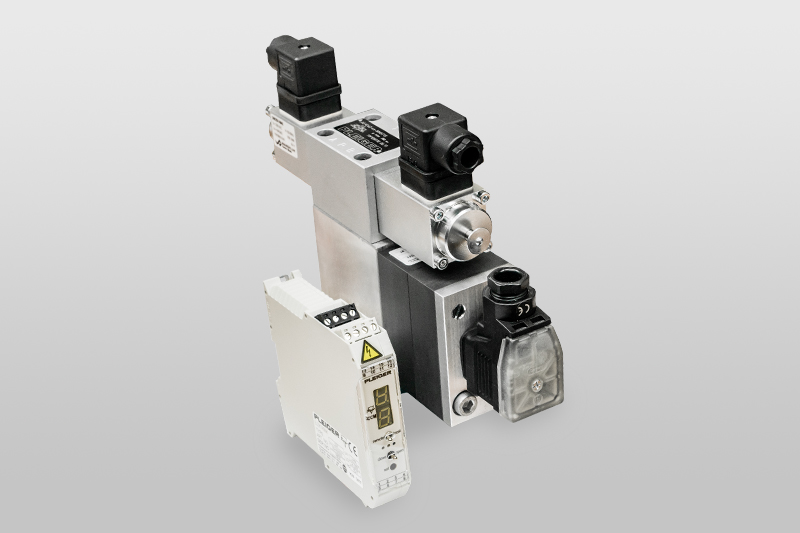

The hydraulic continuous position detection from Pleiger is based on a standardized digital volume counter in combination with the CCM module (Continuous Control Module). This position detection enables highly accurate repeated volume measurements and sets new standards with the position detection of hydraulic actuators. Measurement takes place directly in the control line so that an elaborate hydraulic switching of the oil flow in the return line is not required. The CCM control module utilizes highly complex algorithms for the precise measurement of the actual volume flow.  The implemented self-learning module, through one learn run, enables the use of an arbitrary leak-free hydraulic actuator. The control is thus suitable for nearly every size of actuator.



Benefits of using Pleiger Cont. Position Indication:

  • Universally applicable for nearly every actuator size
  • Simplest hydraulic structure using a 4/3-way solenoid valve
  • Universally applicable for nearly all line cross-sections with large line lengths
  • Simplest cost-effective commissioning by means of self-learning mode
  • Signaling of a possible fault condition
  • Independent of oil viscosity and temperature in the range from –15°C to +60°C
  • No special hydraulic components required for temperature compensation
  • External selection and signal processing possible via Modbus or Profibus DP

Call us now at +49 2324/398-716 or send us an e-mail with your inquiry at industry@pleiger-maschinenbau.de
